Product Center
Specialized in high-performance industrial fans & blowers — integrating precision engineering, quality manufacturing, and nationwide service across India.

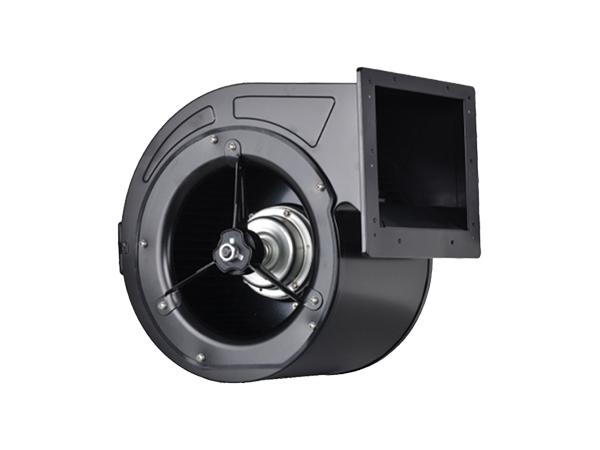

Forward Centrifugal Fans
Forward-curved centrifugal fans deliver high airflow volumes at lower pressure levels, making them ideal for HVAC systems, air handling units, and light industrial ventilation where quiet, efficient air movement is essential.
- Airflow: up to 50,000 m³/hr
- Pressure: up to 500 Pa static
- Temperature: up to 80°C continuous
- MOC: MS, SS 304/316, Aluminium
- Drive: direct or belt-driven
Backward Centrifugal Fans
Backward-inclined and backward-curved fans offer non-overloading power characteristics and superior efficiency at high static pressures. Preferred for process ventilation, dust collection, and industrial exhaust systems.
- Airflow: up to 80,000 m³/hr
- Pressure: up to 3,000 Pa static
- Temperature: up to 250°C (special grades)
- MOC: MS with epoxy coat, SS 316
- Efficiency: up to 82% peak
Axial Flow Fans
Compact, high-volume axial fans engineered for low-resistance airflow applications. Used extensively in cooling towers, air coolers, condensers, and large-area ventilation where volume throughput is critical.
- Airflow: up to 2,00,000 m³/hr
- Pressure: up to 200 Pa static
- Blade pitch: fixed or adjustable
- MOC: Aluminium, FRP, MS
- Low noise, vibration-balanced
Duct Fans
Inline duct fans designed for installation within circular or rectangular ductwork. Ideal for boosting airflow in existing HVAC systems, kitchen exhaust, and tunnel ventilation where space is at a premium.
- Duct sizes: 150mm to 1200mm dia
- Airflow: up to 30,000 m³/hr
- Pressure: up to 800 Pa static
- Low-profile, easy installation
- Available in single or twin-inlet
FRP & PP Fans
Fibre Reinforced Plastic and Polypropylene fans built for highly corrosive atmospheres. Used in chemical plants, plating shops, effluent treatment plants, and pickling lines where metallic fans would rapidly degrade.
- Resistant to acids, alkalis & solvents
- Airflow: up to 60,000 m³/hr
- Temperature: up to 120°C (FRP)
- Lightweight — reduced structural load
- Anti-static grades available
Industrial Blowers
Heavy-duty centrifugal blowers engineered for pneumatic conveying, aeration, combustion air, and material-handling applications. Built with robust scroll housings and dynamically balanced impellers for long service life.
- Pressure: up to 6,000 Pa static
- Airflow: up to 1,20,000 m³/hr
- Temperature: up to 400°C (HT grades)
- Spark-proof & ATEX options
- Cast iron or fabricated steel housing
